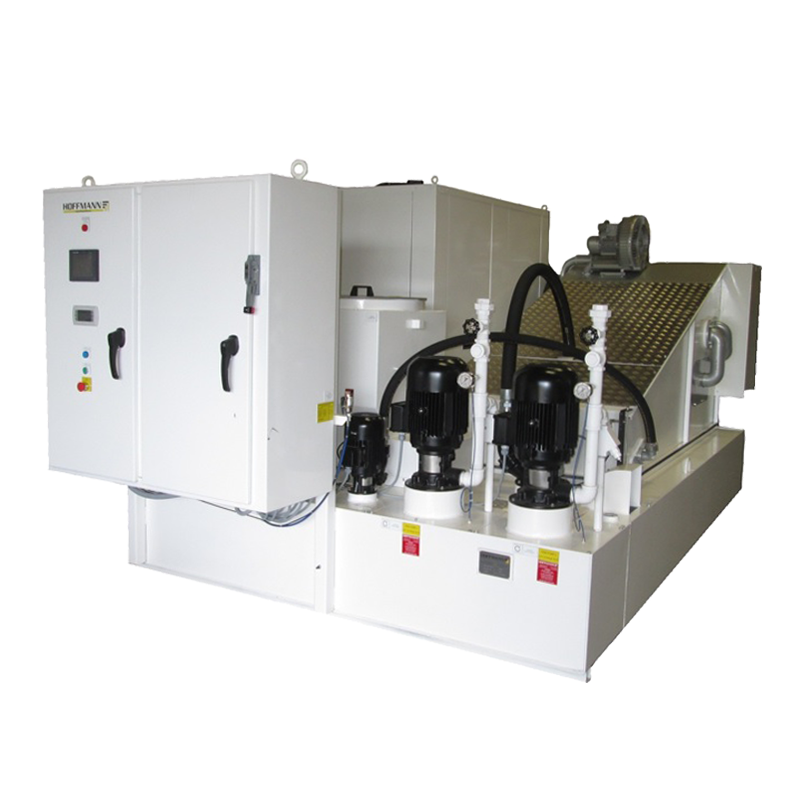

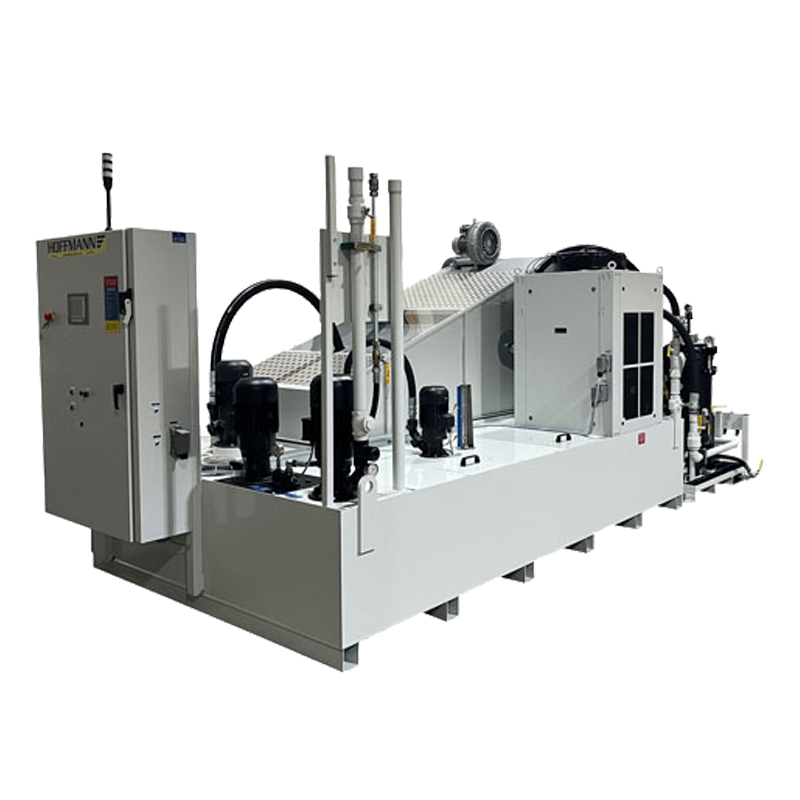

Thanks to a compact design and low operating cost, the HSF Suction Belt Filtration System has become a global market leader for gear grinding applications.
The HSF uses a custom continuous filter belt to deliver superior filtration and a constant coolant supply to your machine tool. Coolant passes through the belt, trapping particulates that form a filter cake to enhance filtration. When a set pressure is reached, the system automatically advances the belt, moving the filter cake to a drying station before disposal. A brush and rinse system clean the belt, ensuring optimal performance. With filtration capacity exceeding demand, the clean tank always maintains enough coolant for uninterrupted machine operation.
The Original One is able to achieve a superior level of filtration while maintaining a steady supply of coolant.
Advantages
- Suitable for oil and water-based coolants
- Fully automatic operation
- Continuous supply of coolant to the machine(s) without downtime
- Reusable filter belt allows for very low overall operating cost with almost no consumables
- Excellent filtration quality
- Integrated drying station produces dry filter cake with minimal residual moisture and low coolant carry off
- Compact design with small footprint
Industry Applications
- Turbine blade grinding
- Turbine vane grinding
- Gear grinding
- Creep feed grinding
- Profile grinding
- CBN grinding
- Block honing
- Crankshaft grinding
- I/D & O/D grinding
Double disc grinding
Options, Accessories & Customizations
Every Hoffmann filter is customizable to your specific needs. We have many accessories and upgrades to choose from.
Micron Rating
A filtration micron rating tells you the size of the smallest particles a filter can trap, measured in microns. Lower micron ratings mean finer filtration. The micron filtration range of the machine can be adjusted with accessories and upgrades. .
